Irrigation Leak Detection & Repair

Irrigation system leaks in Smyrna are a distinct category from sprinkler head or coverage issues, and they are among the most cost-effective problems to detect early because they run on the same meter as household supply and inflate the same monthly bill from the City of Smyrna Water and Sewer Division. An irrigation lateral that leaks at a joint between watering cycles, releasing water into the soil continuously rather than only during scheduled irrigation runs, can add 1,000 to 4,000 gallons per month to a Smyrna household's water consumption without any corresponding benefit to the lawn. The water goes into the soil adjacent to the pipe rather than to the emitter heads servicing the turf.

Smyrna's landscaping conditions create specific irrigation leak risk factors. The mature tree canopy that gives Smyrna neighborhoods their character also produces the most aggressive root systems for buried irrigation laterals. Lateral PVC supply lines running within 10 to 20 feet of large oaks, pines, or other established trees in Walker Park, Highland Park, and Belmont Hills developments develop root intrusion at joint couplings within a few years of tree root reach. Georgia red clay soil's seasonal shrink-swell cycle also stresses the glued PVC coupling connections that are standard in residential irrigation systems, particularly in the sloping yard sections where soil movement is more pronounced.

Distinguishing Irrigation Leaks from Sprinkler Head Issues

Irrigation leaks fall into two categories with different detection approaches:

• Lateral line leaks: Failures in the underground PVC supply lines between the manifold and the sprinkler heads. These leak continuously when the zone is pressurized or, if the zone isolation valve fails to fully close, between irrigation cycles. They produce water loss on the meter without corresponding above-ground water delivery to the turf.
• Head and riser failures: Cracked or broken sprinkler heads, failed head seals, and broken riser extensions leak during irrigation cycles and are visible as a geysering head or a wet patch at the head location during operation. These are typically less expensive to repair than lateral failures because they require only head replacement rather than lateral excavation.

Zone Pressure Testing for Irrigation Leak Location

The most efficient method for locating an irrigation lateral leak is zone isolation pressure testing. We close the manifold supply to all zones except the zone under investigation, pressurize that zone, and monitor pressure over a timed interval. A zone with an active lateral leak shows measurable pressure decay over the test period. We test each zone in sequence, identifying the leaking zone before beginning any ground scanning or excavation.

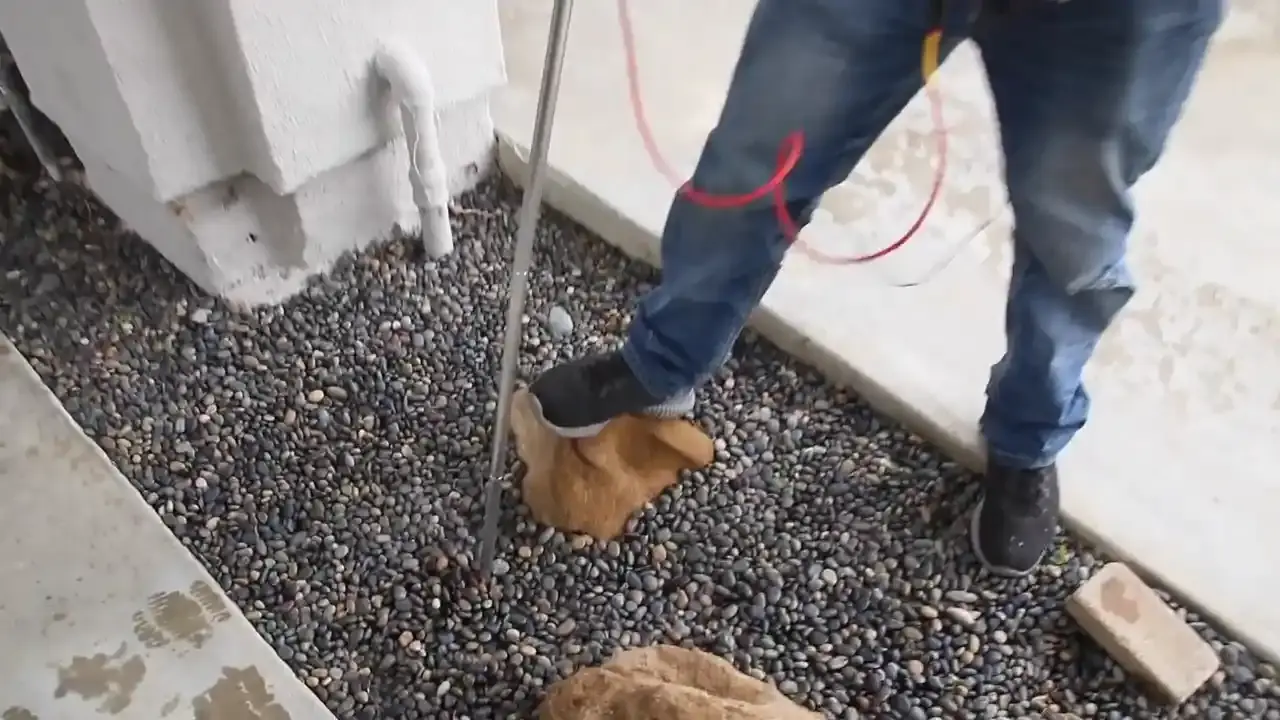

Once the leaking zone is confirmed, acoustic ground scanning along the lateral pipe path locates the breach point. Because irrigation laterals run at lower pressure than domestic supply, the acoustic signal from a lateral leak is weaker than from a service line failure. We use higher-sensitivity listening equipment for irrigation work and supplement with a tracer approach on laterals where acoustic signal is not conclusive.

Irrigation Lateral Repair in Smyrna

Most irrigation lateral repairs involve excavating at the confirmed breach point, cutting out the damaged pipe section or failed coupling, and inserting a new PVC section with solvent-welded slip couplings. In root-infiltrated couplings, we clear the root mass, inspect the adjacent pipe for structural damage from root expansion, and replace the full coupling assembly rather than just the cracked surface. Where root intrusion is extensive across a zone run near large trees, we discuss rerouting the lateral away from the root zone as a more durable long-term solution than repeated coupling repairs in the same location.
